Description

Specifications
Input Impedance:470K Ohms.
Output Impedance:100 Ohms.
Power Supply:AC Adapter 9V DC,center negative.
Current Draw:68mA.
Dimensions:94mm(D)*42mm(W)*48mm(H).
Weight:135g.

DC IN:
Use a 9-volt DC regulated AC adapter(plug polarity is poositive on the barrel and negative in the center).

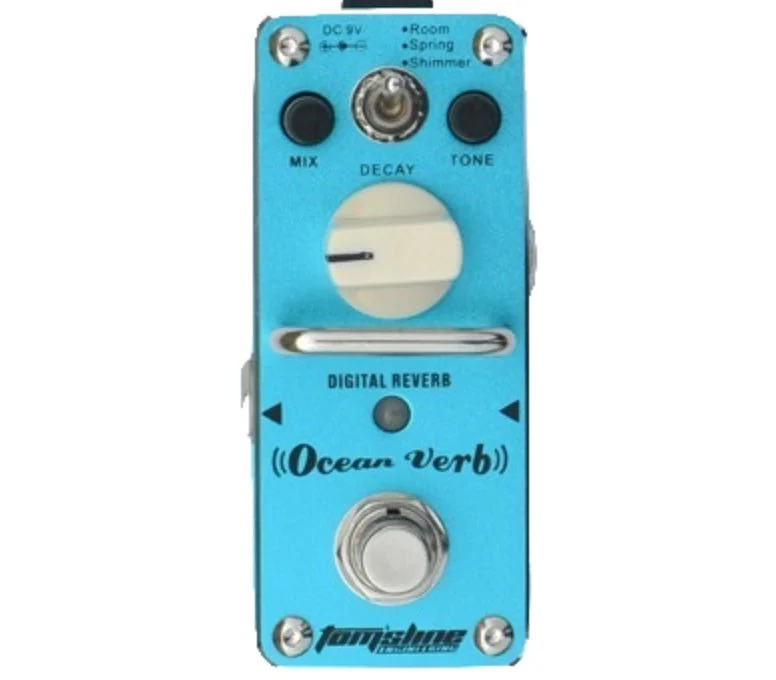

MODE Switch:
Switch between Room mode,Spring mode and Shimmer mode.

MIX Knob:
Adjust the mix level betwen dry signal and reverb.

OUTPUT Jack:
1/4″mono audio jack,for signal output

True Bypass Footswitch
Push down the footswitch to switch between effects and bypass status.
